Cigarette Making Machines

Making and plug assembly machines delivering 2,000 to 5,000 cigarettes per minute: the speed and precision high-volume production lines demand.

Est. 1960

ISO 9001:2015

20+ Countries

1000+ Installations

9 Machines in This Category

Select a machine to view detailed specifications, features, and request a quote

Cigarette Making Machines

MK8D

MK8D Cigarette Making Machine

3,000 cigarettes per minute. Proven reliability with modern automation.

Speed:3,000 cig/min

Hydraulic weight control unit with écréteur and adjustable end discs for precise density

Automatic bobbin changer with splice detection and rejection for continuous operation

Full suction enclosure ensures a dust-free operating environment

View Details

Cigarette Making Machines

MK8SM

MK8SM Cigarette Making Machine

2,500 cigarettes per minute from a proven, automation-upgraded maker.

Speed:2,500 cig/min

Produces up to 2,500 cigarettes per minute at a maximum tobacco rod speed of 175 metres per minute

Hopper suitable for pneumatic tobacco feeding or hand (skip) feeding, with a centralised dust-collection system

Hydraulic weight-control unit and écréteur with plain or denser end discs ensure uniform size, weight and draw

View Details

Cigarette Making Machines

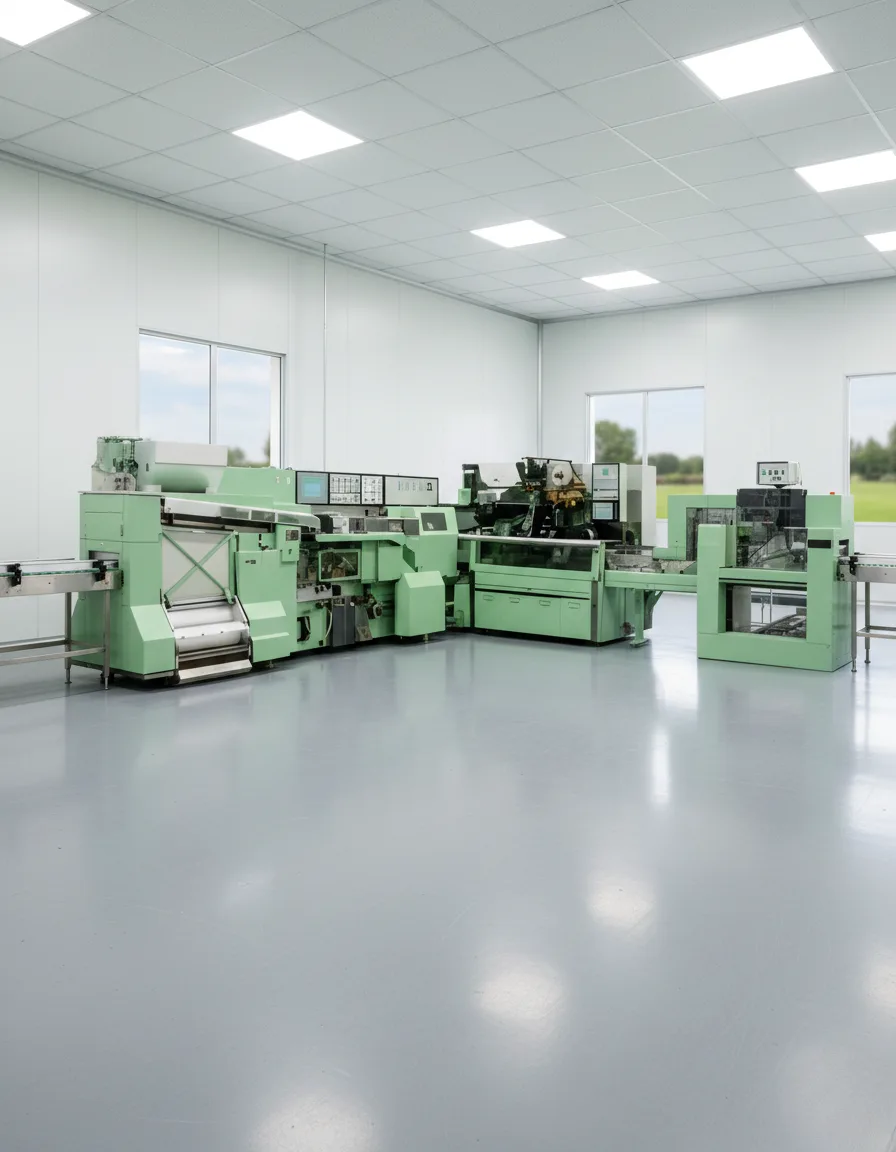

MK9

MK9 Cigarette Making Machine

5,000 cigarettes per minute. 7.2 million per day.

Speed:5,000 cig/min

Produces 5,000 cigarettes per minute (over 7 million per day at full capacity), outperforming most mid-range makers by 2x

Integrated tobacco cutting, wrapping, and assembly systems maintain sub-millimetre precision even at maximum throughput

Engineered for 24/7 continuous operation with field-proven durability that minimises unplanned downtime

View Details

Cigarette Making Machines

PM4

PM4 High-Speed Filter Rod Maker

High-speed rod production: 2,500 per minute.

Speed:2,500 rods/min

Produces 2,500 filter rods per minute with high consistency and low rejection rates

Dedicated tow processing unit driven mechanically ensuring perfect synchronization

2K single-knife cut-off system ensures clean, accurate cuts at high speeds

View Details

Cigarette Making Machines

MAX 3

MAX 3 / MAX 5 Plug Assembler

3,000 filter rods per minute. Precise assembly for composite filters, and the perfect partner for MK8D.

Speed:3,000 cig/min

Assembles 3,000 filter-tipped cigarettes per minute, matched to the MK8D for a balanced high-speed line

Integrated cyclone fan unit and dust-free enclosure keep the operation clean and reduce maintenance

Turret-type tip turning device ensures precise orientation and gentle handling of filter plugs

View Details

Cigarette Making Machines

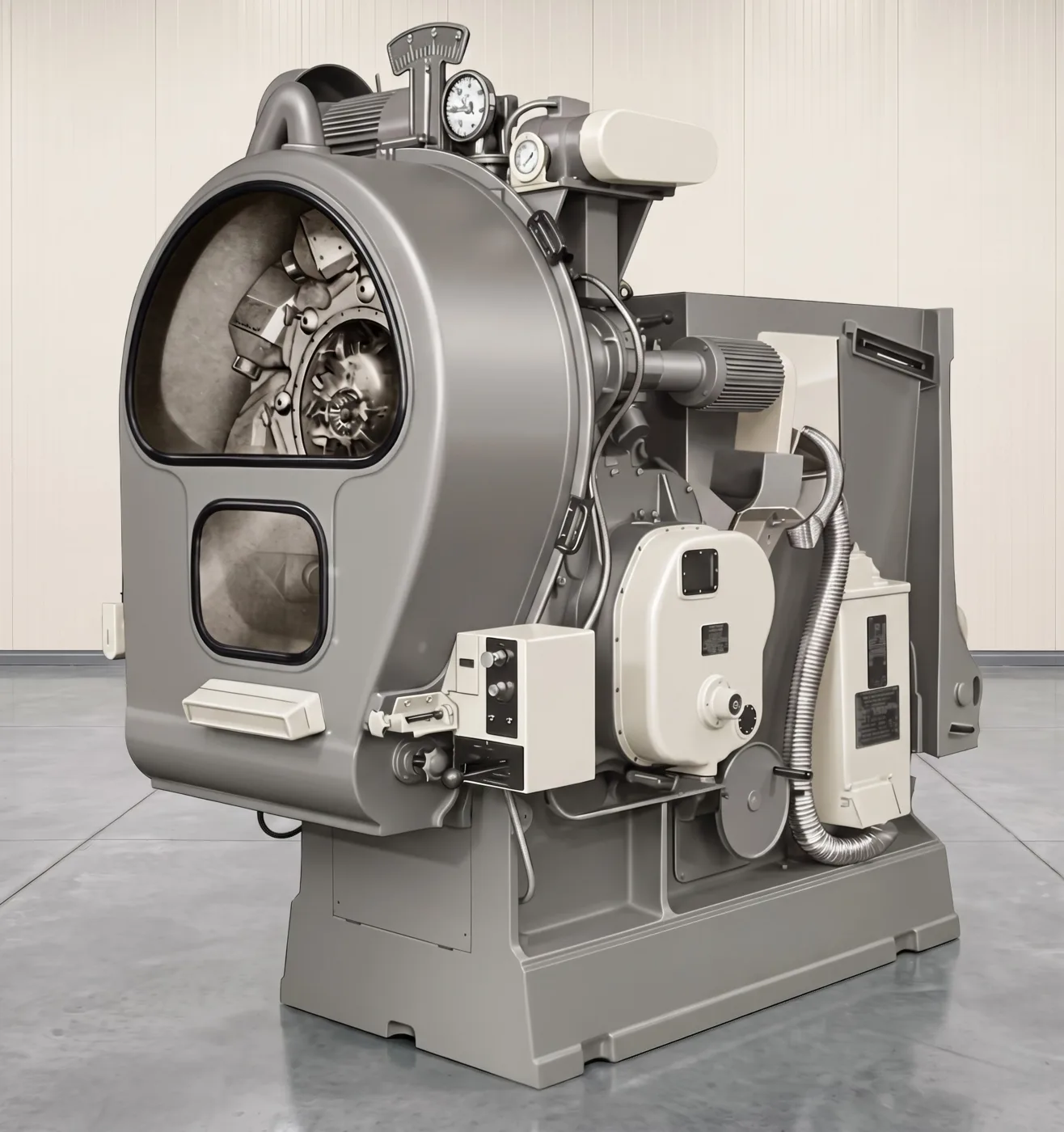

MK4

MK4 Tobacco Cutting Machine

Up to 2,700 kg of cut tobacco an hour from a single rotary cutting head.

Output:Up to 2,700 kg/hr

Eight-knife rotary cutting head shears compressed tobacco into a consistent cut width at 2,400 cuts per minute

Automatic feed with an adjustable feed rake tunes leaf flow to any blend while the machine runs

High-speed grindstone keeps every knife razor-sharp, dressed automatically by a diamond for a clean grinding surface

View Details

Cigarette Making Machines

PA 7RO

PA 7RO Plug Assembling Unit

2,000 filter-tipped cigarettes per minute. The off-line plug assembler for the MK 8 SM.

Speed:2,000 cig/min

Assembles up to 2,000 filter-tipped cigarettes per minute, designed to link with the MK 8 SM cigarette making machine

Turret-type tip turning device with single end-closure deflector drum and cigarette rolling plate for precise tipping

Multivariable cork drum with integrated temperature control and adhesive reservoir for consistent, uniform application

View Details

Cigarette Making Machines

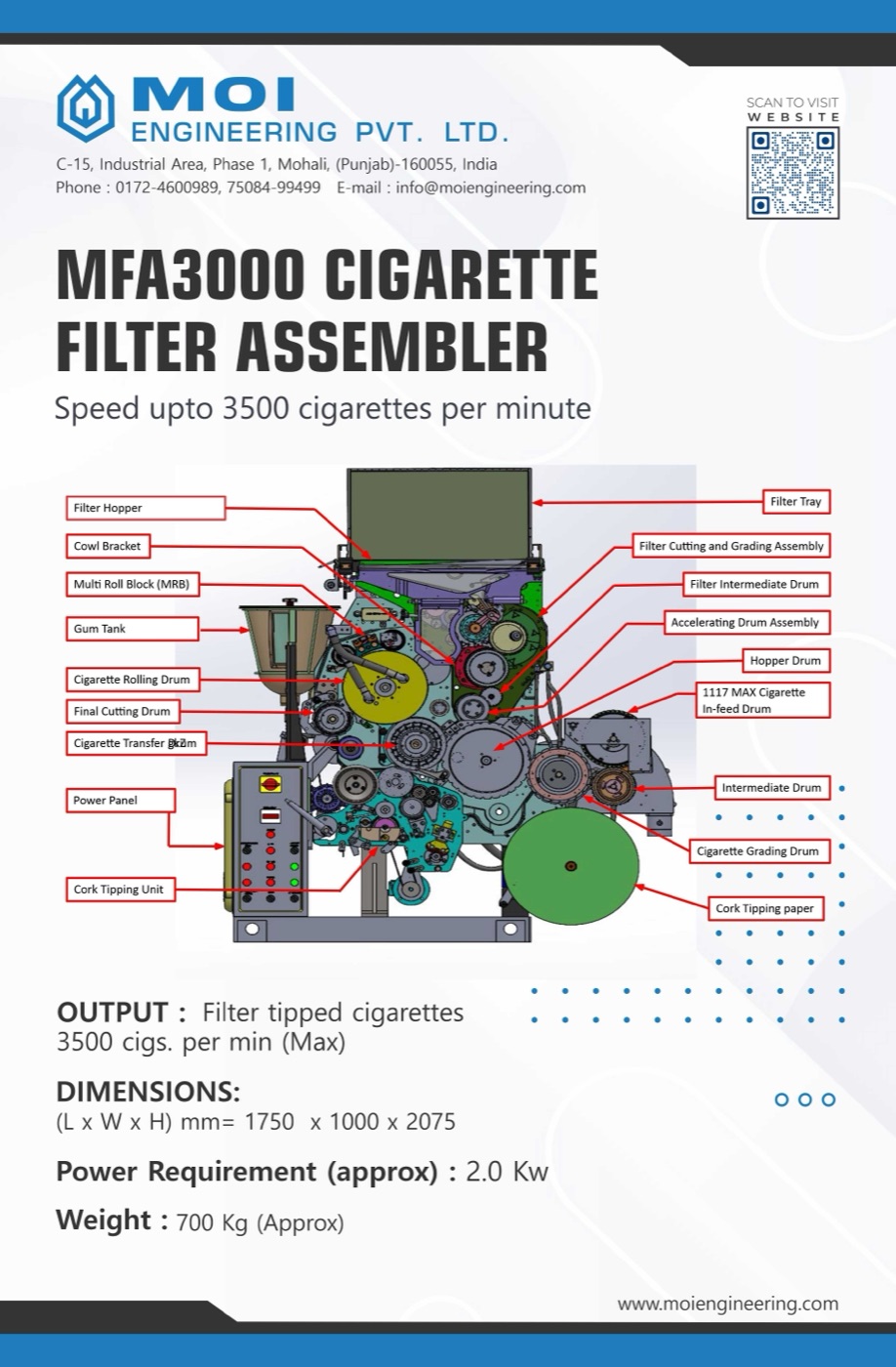

MFA3000

MFA3000 Cigarette Filter Assembler

3,500 filter-tipped cigarettes per minute. The newer-generation in-line filter assembler.

Speed:3,500 cig/min

Assembles up to 3,500 filter-tipped cigarettes per minute in a compact in-line footprint

Filter cutting and grading assembly with filter hopper and intermediate drum for consistent plug handling

Cork tipping unit with gum tank and multi roll block (MRB) for uniform tipping-paper application

View Details

Cigarette Making Machines

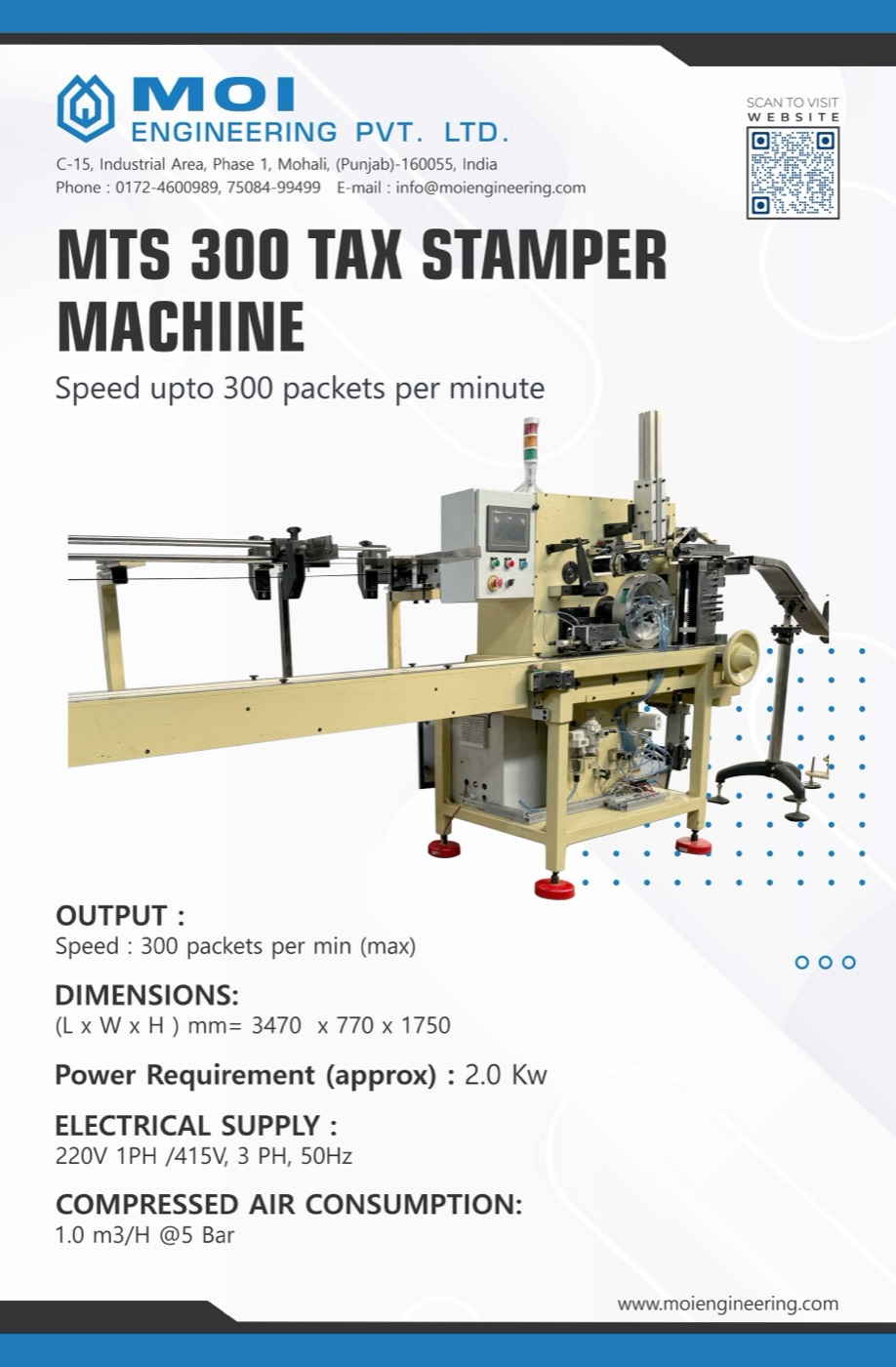

MTS 300

MTS 300 Tax Stamper Machine

Applies tax stamps to cigarette packets at up to 300 packets per minute.

Speed:300 packets/min

Applies tax stamps at up to 300 packets per minute to keep pace with the packing line

Low 2.0 kW power draw and modest compressed-air requirement

Flexible electrical supply

View Details

Which Cigarette Making Machine Do You Need?

These nine machines cover four jobs that happen in order. Most buyers need one or two of them, not all nine.

1. Cutting the tobacco

MK4

Primary processing, before anything is rolled. The MK4 cuts up to 2,700 kg of tobacco an hour, takes all blends of leaf and stem, and produces tobacco to any required texture. Leaf is conveyed and compressed through an adjustable-pressure mouthpiece into an eight-knife rotary head.

MK4 specifications

2. Making the cigarette

MK9, MK8D, MK8SM

The makers. These turn cut tobacco and paper into finished rods, and this is the machine most people mean by "cigarette making machine". Pick by output:

MK9 — 5,000 cigarettes a minute, 7.2 million a day
MK8D — 3,000 a minute
MK8SM — 2,500 a minute

3. Filters: making, then attaching

PM4, MFA3000, MAX 3, PA 7RO

Filter rods are made on one machine and joined to plain cigarettes on another. The joining machines are matched to a specific maker, which is the part buyers most often miss:

PM4 — makes the filter rods, 2,500 a minute
MFA3000 — in-line assembler, 3,500 filter-tipped cigarettes a minute
MAX 3 / MAX 5 — 3,000 a minute, links directly with the MK8D
PA 7RO — 2,000 a minute, designed to link with the MK8SM

4. Tax stamping

MTS 300

The compliance stage. The MTS 300 applies excise or tax stamps to finished packets at up to 300 packets a minute, on 2.0 kW and 1.0 m³/h of compressed air at 5 bar, from either single-phase 220 V or three-phase supply.

MTS 300 specifications

Buying a line rather than a machine?

Everything above is the making half. After the cigarettes exist they go to packing, then overwrapping, cartoning and bundling. If you are specifying the whole thing rather than one machine, thecigarette production line page sets out all seven stages in order, with the machine for each and the questions buyers usually ask.

Machines are quoted on request. Send the stage, your target output and your pack format and a quote for a single machine normally goes out within one working day.
