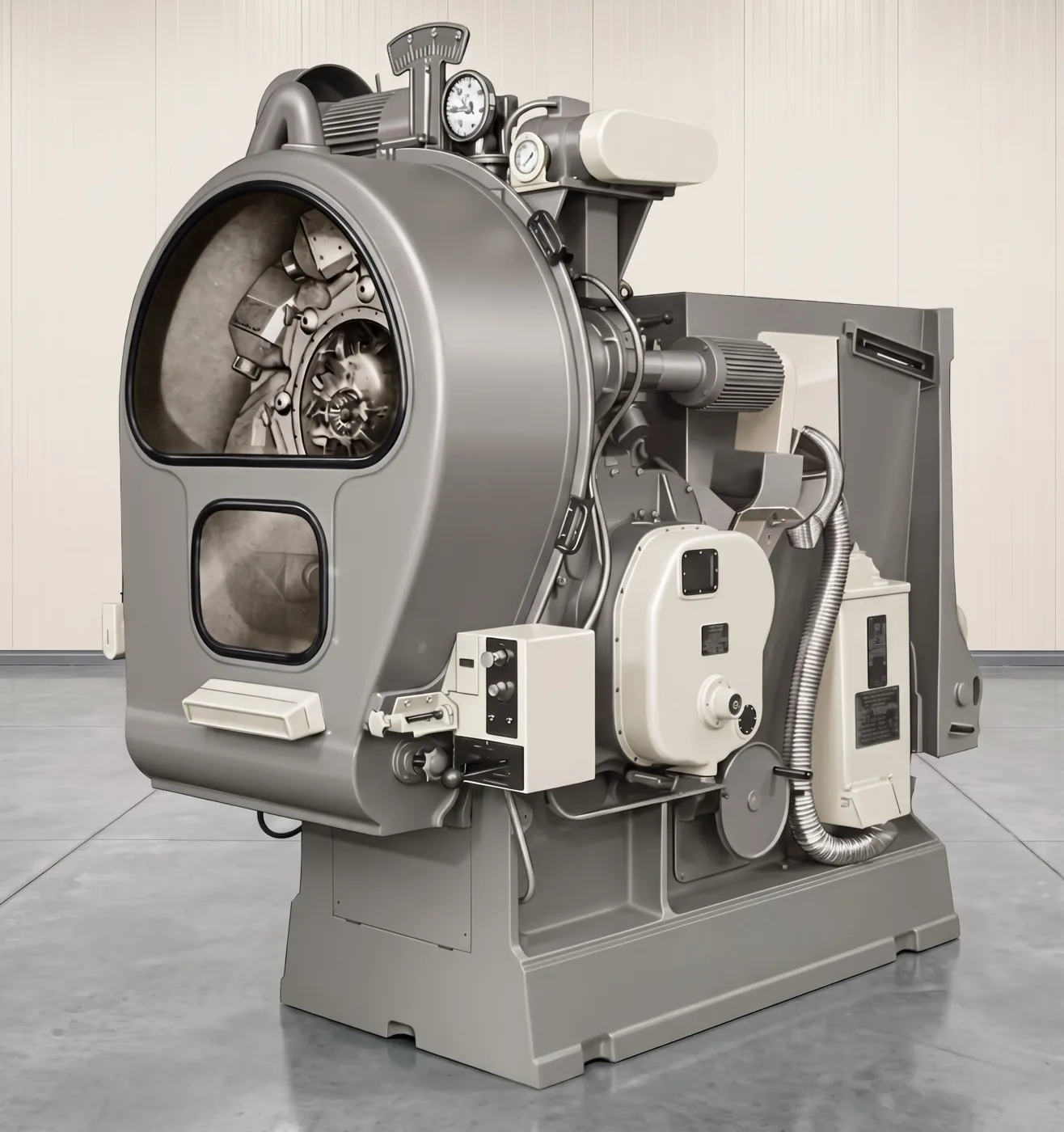

MK4 Tobacco Cutting Machine
Up to 2,700 kg of cut tobacco an hour from a single rotary cutting head.
Overview
The MK4 is a rotary tobacco cutting machine built for primary processing, cutting up to 2,700 kg of tobacco an hour. It accommodates all blends of leaf and stem and produces tobacco of any desired texture. Leaf is conveyed and compressed through an adjustable-pressure mouthpiece to an eight-knife rotary cutting head; the knives shear the compressed material into cut tobacco of consistent width. A high-speed grindstone keeps every knife at razor sharpness, dressed automatically by a diamond and served by integral dust extraction so the cut product is never contaminated. A hinged fibre-glass safety cowl with interlock and delayed opening protects the operator at the cutting head.
Key Specifications
Full Technical Specifications
MK4 Tobacco Cutting Machine -- Complete specification details
| Specification | Value |
|---|---|
| Output (black tobacco, 0.8 mm @ 26% moisture) | 2,700 kg per hour |
| Output (stem, 0.17 mm @ 40% moisture) | 650 kg per hour |
| Cutting Head | 8-knife rotary |
| Cutting Head Speed | 2,400 cuts per minute |
| Range of Cutting Widths | 5.65 to 0.1 mm (4 to 222 cuts/inch) |
| Head Shaft Speeds | 2,400 @ 300 rpm / 2,240 @ 280 rpm / 2,080 @ 260 rpm |
| Machine Height | 2,424 mm |
| Footprint (approx) | 2,591 x 1,450 mm |
| Machine Weight | 4,930 kg with dust unit / 4,790 kg without |
| Power Requirement | 10 kW with dust unit / 9.5 kW without |
| Main Motor | 10 HP, 3-phase, 50/60 Hz, 1,420/1,700 rpm |
| Dust Collection Unit Rating | 8.5 m3 per minute |
| Gum Dispersal Heater Temperature | 50 to 60 C (122 to 140 F) |
Features & Benefits
Eight-knife rotary cutting head shears compressed tobacco into a consistent cut width at 2,400 cuts per minute
Automatic feed with an adjustable feed rake tunes leaf flow to any blend while the machine runs
High-speed grindstone keeps every knife razor-sharp, dressed automatically by a diamond for a clean grinding surface
Hot-air gum dispersal impinges on the knife assembly to stop gum build-up, eliminating flakes dropping into the final product
Hinged fibre-glass safety cowl with interlock switch and delayed opening keeps operators clear of the rotating head
Integral dust suction and a free-standing collection unit rated at 8.5 m3/min keep cut tobacco clean and the work area dust-free
Reversing clutch clears residual material quickly at the end of a run; an optional variable-speed drive varies cuts per minute
This Machine Is for You If...
You need high-speed tobacco leaf and stem cutting for Tobacco Industry production
You're upgrading from manual processes to automated cut-rag preparation for cigarette making
You need a machine that delivers eight-knife rotary cutting head shears compressed tobacco into a consistent cut width at 2
