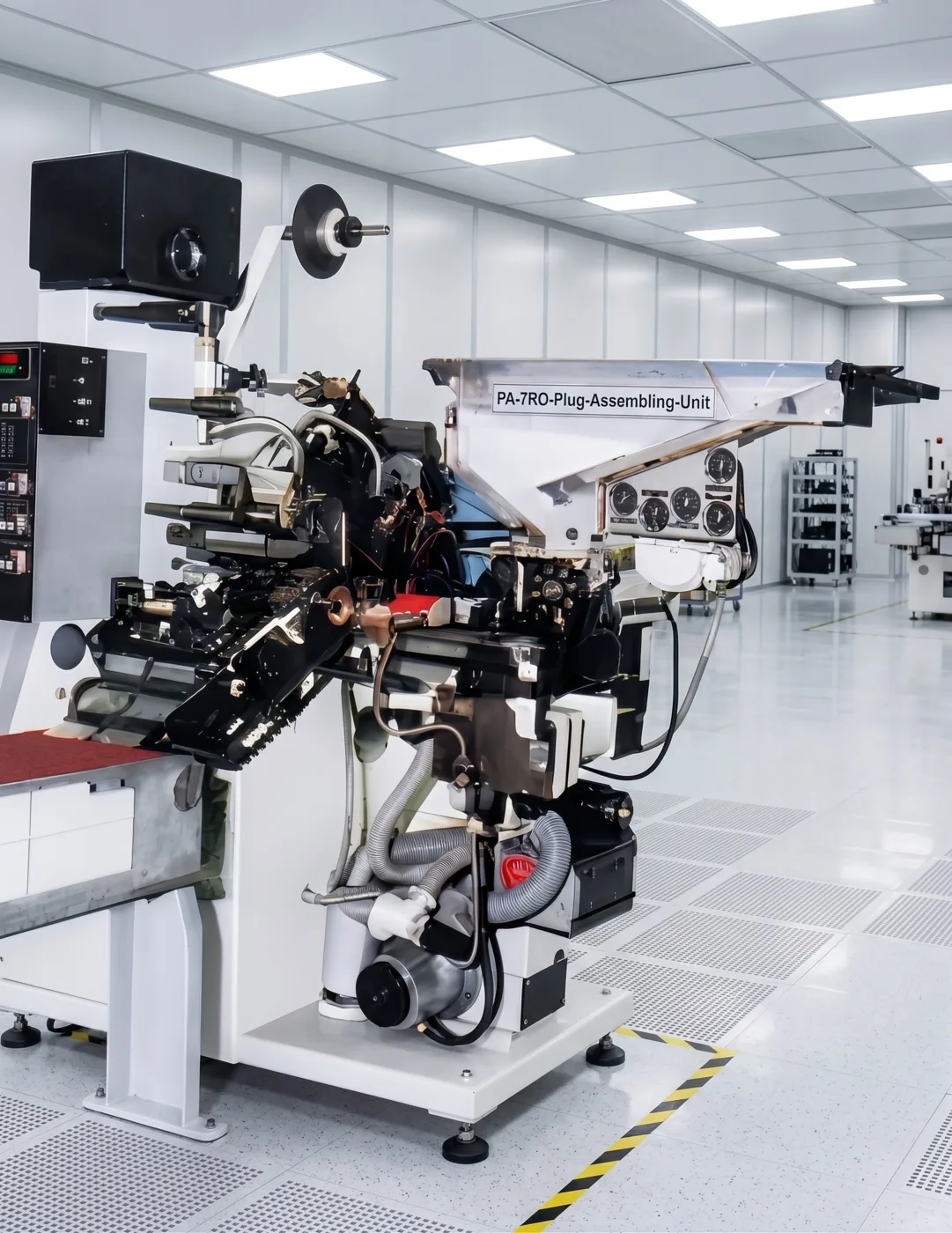

PA 7RO Plug Assembling Unit
2,000 filter-tipped cigarettes per minute. The off-line plug assembler for the MK 8 SM.
Overview
The PA 7RO plug-assembling unit attaches filter tips to plain cigarettes, producing up to 2,000 filter-tipped cigarettes per minute. It is designed to link with the MK 8 SM cigarette making machine and comes complete with a plug (filter) hopper with tray reserve, tipping-material bobbin holder, adhesive reservoir and applicator, single end-closure deflector drum, cigarette rolling plate, a multivariable cork drum with temperature control, a cyclone fan unit, a free-standing vacuum and pressure pump unit, a turret-type tip turning device and a forward-facing cigarette hand catcher. Built from high-precision, heat-treated components, it delivers low wear, low maintenance and long service life.
Key Specifications
Full Technical Specifications
PA 7RO Plug Assembling Unit: complete specification details
| Specification | Value |
|---|---|
| Output Capacity | 2,000 filter-tipped cigarettes/min (max) |
| Overall Cigarette Length | 65 – 85 mm |
| Tobacco Length | 49 – 84 mm |
| Tobacco Section & Plug Diameter | 6.37 – 10 mm |
| Filter Plug Length | 8 – 25.5 mm |
| Cork Length | 11 – 30 mm |
| Machine Height | 1.4 m |
| Machine Weight | 1,430 kg (approx.) |
| Power Supply | 415 V, 3 phase – 4 wire, 50 Hz |
| Power Requirement | 7 kW |
| Air Requirement (Vacuum) | 0.1 m³/min @ 510 mm Hg |
| Air Requirement (Pressure) | 0.075 m³/min @ 0.5 atm |
Features & Benefits
Assembles up to 2,000 filter-tipped cigarettes per minute, designed to link with the MK 8 SM cigarette making machine
Turret-type tip turning device with single end-closure deflector drum and cigarette rolling plate for precise tipping
Multivariable cork drum with integrated temperature control and adhesive reservoir for consistent, uniform application
Cyclone fan unit and free-standing vacuum and pressure pump unit keep the operation clean and dust-free
Built and supported by MOI Engineering with spare parts and service
This Machine Is for You If...
You are set up for filter plug assembly
You also run filter-tipped cigarette production
You need 2,000 cig/min and a machine built to hold that rate
Frequently Asked Questions
What is the output of the PA 7RO?
2,000 filter-tipped cigarettes per minute at maximum.
What does the PA 7RO run on?
7 kW, with vacuum at 0.1 cubic metres a minute at 510 mm Hg and pressure air at 0.075 cubic metres a minute at 0.5 atm for the free-standing unit. Machine weight is about 1,430 kg.
What cigarette sizes does it make?
Overall length 65 to 85 mm, tobacco length 49 to 84 mm, tobacco and plug diameter 6.37 to 10 mm, filter plug length 8 to 25.5 mm.
