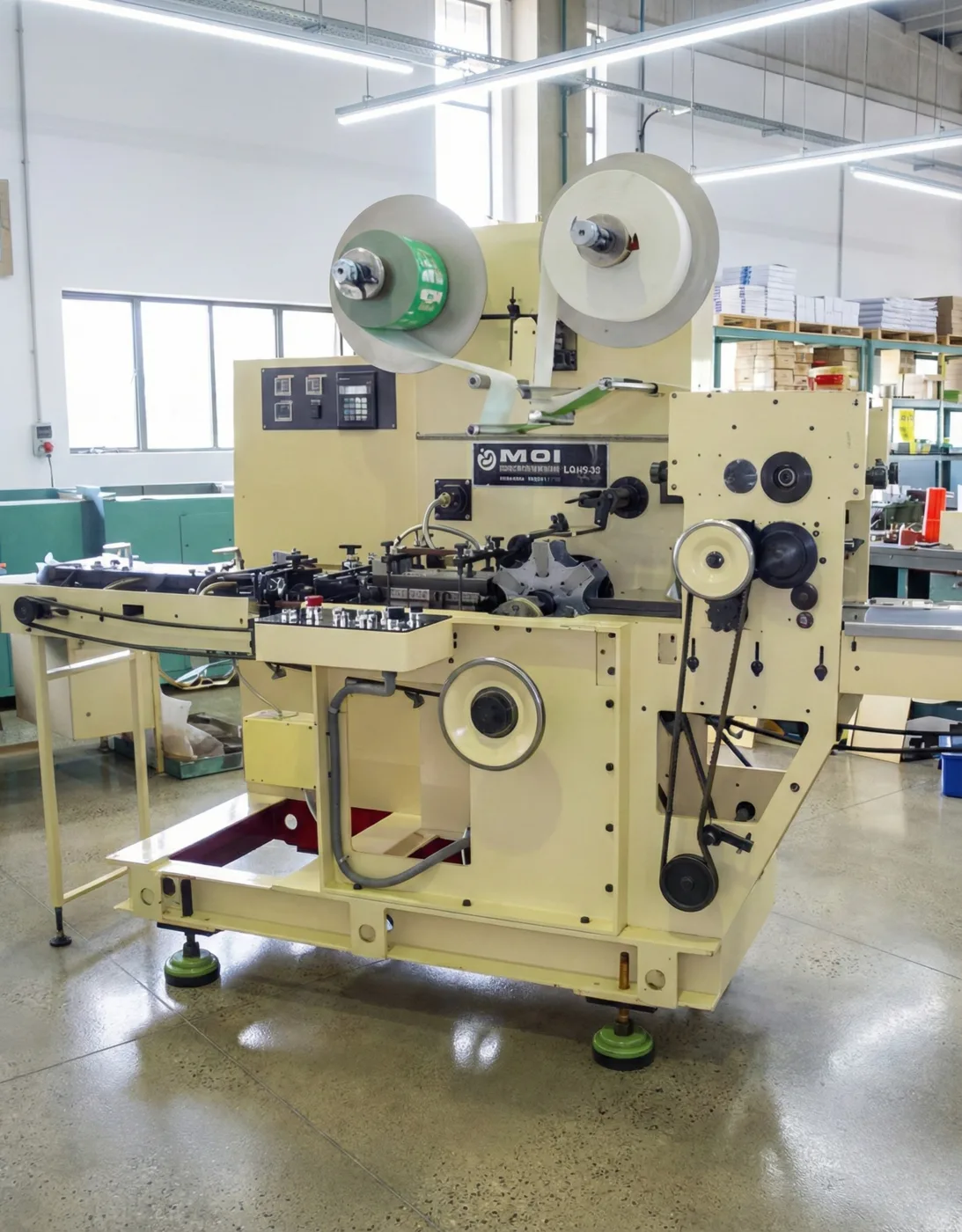

TSW 160 Toilet Soap Wrapping Machine
Rectangular and elliptical bars — 160 per minute with heat sealing.
Overview
Toilet soap comes in shapes standard wrapping machines were not designed for. The TSW 160 wraps both rectangular and elliptical bars at 160 packets per minute using advanced heat-sealing technology — no shape changeover hassles, no quality compromise. It handles bars from 60 to 110 mm in length with paper, poly, or hot melt laminated materials. For soap manufacturers running multiple bar shapes on the same line, this is the machine that eliminates the choice between shape flexibility and production speed.
Key Specifications
Full Technical Specifications
TSW 160 Toilet Soap Wrapping Machine -- Complete specification details
| Specification | Value |
|---|---|
| Output Capacity | Up to 160 packets/minute |
| Product Length | 60-110 mm |
| Product Width | 35-65 mm |
| Product Height | 13-35 mm |
| Wrapping Material | Paper, Poly, Hot Melt Laminated |
| Lamination | Inner side / Outer side |
| Core Diameter | 76 mm |
| Reel Diameter | 400 mm |
| Sealing Technology | Heat Sealing |
| Supported Shapes | Rectangular, Elliptical (excluding round) |
| Electrical Supply | 415V, 3-phase-4 wire, 50 Hz |
| Installed Power | 4.5 kW |
| Machine Length | 2,650 mm |
| Machine Width | 1,500 mm |
| Machine Height | 1,760 mm |
| Machine Weight | 1,000 kg |
Features & Benefits
Wraps 160 rectangular and elliptical soap bars per minute — shape flexibility without sacrificing production speed
Advanced heat-sealing technology creates tight, secure, tamper-evident wraps that protect product integrity on the shelf
Handles bars from 60-110 mm length and 13-35 mm height with paper, poly, or hot melt laminated materials
Switch between rectangular and elliptical bar shapes on a single machine, eliminating the need for separate wrapping lines
Runs on 4.5 kW with 400 mm reel diameter, balancing throughput with operational cost across multi-shift production
Robust 1,000 kg construction at 2,650 x 1,500 mm footprint — built for the demands of continuous soap manufacturing
This Machine Is for You If...
You need high-speed toilet soap wrapping for Soap & Detergent Industry production
You're upgrading from manual processes to automated elliptical soap bar packaging
You need a machine that delivers wraps 160 rectangular and elliptical soap bars per minute — shape flexibility without sacrificing production speed
How It Works
- 1
Bars are fed by suction cups, which protect the printed or embossed face of premium toilet bars.
- 2
Reel-fed heat-sealable wrapper is cut to length, with eye-mark register control aligning printed wrappers.
- 3
The bar is pushed into a turret and film is folded around it with contour folders shaped to rectangular or elliptical geometry.
- 4
The turret indexes to complete the folds while spring-loaded blocks hold the bar.
- 5
Heated rollers or elements fuse the folds and the finished bar is discharged.
“TSW” is MOI’s Toilet Soap Wrapper. Premium toilet soaps — often elliptical as well as rectangular — call for gentle suction-cup feeding and precise contour folding, which this machine is built to deliver for a clean retail finish.
Frequently Asked Questions
Can it wrap both rectangular and elliptical bars?
Yes — contour folders and change parts dimensioned to the bar shape handle oval as well as rectangular bars; oval handling is a defining feature of premium toilet-soap machines.
How is the printed wrapper kept in register?
Via eye-mark / register correction so the print lands correctly on each bar.
Why suction-cup feeding?
It is gentler than pushers, protecting the embossed or printed face of premium toilet bars.
