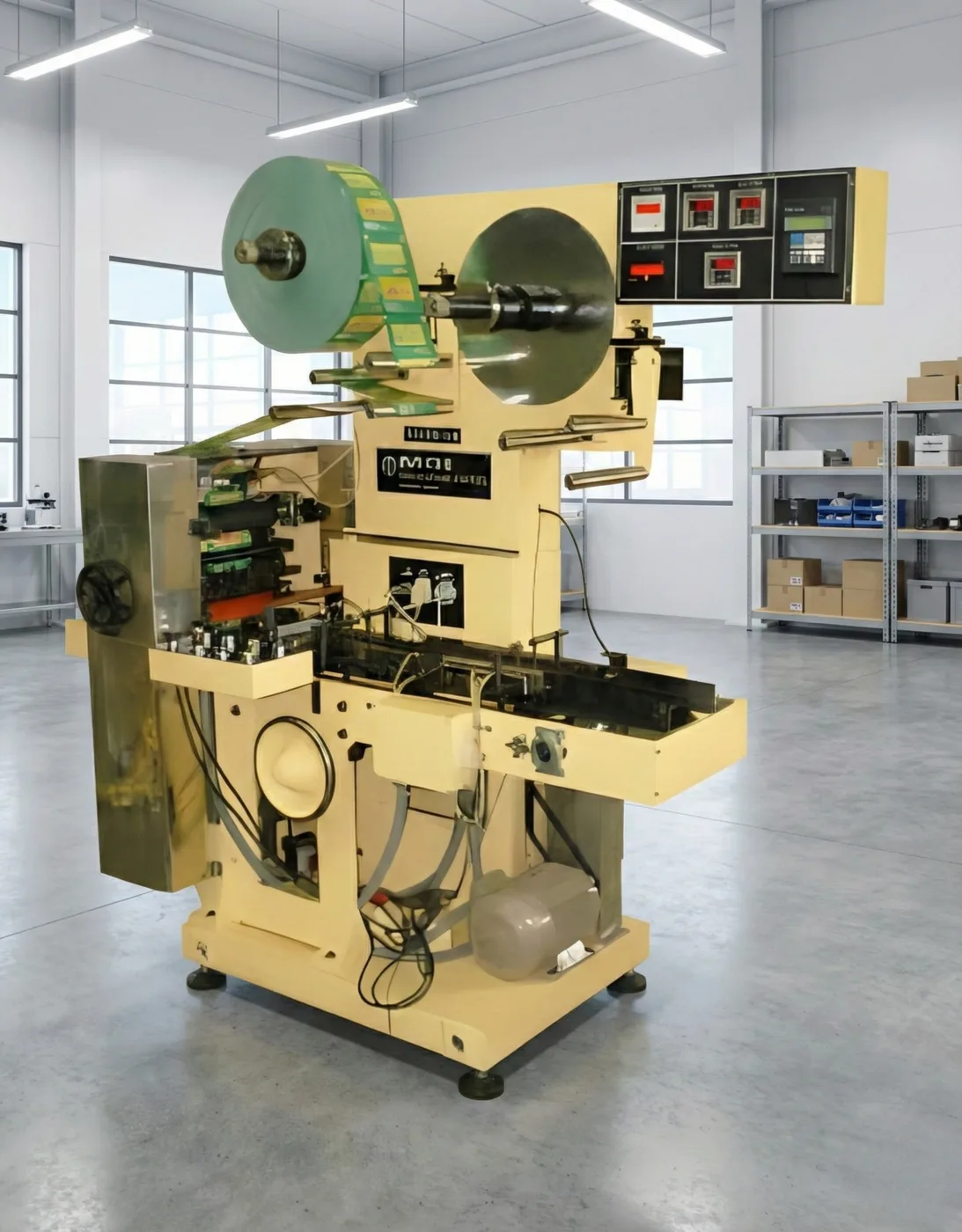

SWIFT-VX Detergent/Laundry Soap Wrapping Machine
170 soap cakes per minute. Outpace your competition, not your budget.
Overview
Your soap line runs at 60 cakes per minute? The SWIFT-VX does 170. That is nearly triple the throughput from a single machine weighing just 700 kg, so you can triple your wrapped output without tripling your floor space, operators, or energy bill. It handles detergent cakes and laundry soap bars from 60 to 140 mm in length with paper, poly, or hot melt lamination wrapping. At 3 kW on a 2 HP motor, it delivers production capacity that outpaces competitors without outpacing your budget.
Key Specifications
Full Technical Specifications
SWIFT-VX Detergent/Laundry Soap Wrapping Machine: complete specification details
| Specification | Value |
|---|---|
| Output Capacity | Up to 170 cakes per minute |
| Product Length Range | 60-140 mm |
| Product Width Range | 50-62 mm |
| Product Height Range | 12-40 mm |
| Compatible Wrapper Materials | Paper, Poly, Hot Melt Lamination |
| Maximum Wrapper Reel Diameter | 500 mm |
| Core Diameter | 76 mm |
| Power Supply | 415V, 3-phase, 50 Hz |
| Installed Power | 3 kW |
| Motor Specifications | 2 HP |
| Machine Length | 3,450 mm |
| Machine Width | 800 mm |
| Machine Height | 1,710 mm |
| Machine Weight | 700 kg |
Features & Benefits
Wraps 170 soap cakes per minute, nearly triple the output of conventional 60/min machines
Handles detergent cakes from 60-140 mm length and 12-40 mm height with paper, poly, or hot melt lamination for complete material flexibility
Large 500 mm reel diameter capacity reduces reel changes and keeps your line running longer between material loads
Just 700 kg on a 3,450 x 800 mm footprint: triple your throughput without tripling your floor space
Runs on 3 kW with a 2 HP motor, delivering industry-leading output at a fraction of the energy cost per wrapped cake
Precision-engineered wrapping heads ensure tight, consistent wraps that protect your product and present your brand
This Machine Is for You If...
You need high-speed detergent cake wrapping for Soap & Detergent Industry production
You're upgrading from manual processes to automated laundry soap packaging
You need a machine that delivers wraps 170 soap cakes per minute
How It Works
- 1
Soap cakes feed on a continuous-motion conveyor; full-face overhead pushers move the bars to the wrapping station.
- 2
Reel-fed wrapper (heat-sealable BOPP or laminate, often with an inner stiffener) is positioned and cut to length.
- 3
Pushers drive the cake and cut wrapper into a turret, folding the film around the bar.
- 4
The turret indexes to complete the top and end folds while spring-loaded blocks hold the cake.
- 5
Roller sets form the long seal, the end folds are heat-sealed, and the wrapped bar is discharged.
Soap-bar wrapping is a dedicated machinery category. The SWIFT-VX is built for sturdy rectangular laundry and detergent cakes, which are pusher-fed and tolerate firm folding, distinct from the gentler handling premium toilet soaps require. The strongest reference in MOI’s archive is an order record: a leading Indian detergent maker put a batch of SWIFT wrappers on its lines in 2005 and came back in 2010 for a larger batch of SWIFT-VX.
Frequently Asked Questions
How is a detergent-bar wrapper different from a toilet-soap wrapper?
Detergent and laundry bars are rectangular, pusher-fed and tolerate firmer handling; toilet-soap machines often add gentle suction-cup feeding for a premium finish.
What wrapping material does it use?
Heat-sealable BOPP or laminate, frequently with an inner stiffener; hot-melt adhesive can seal on slower lines.
How is the bar held during folding?
A rotating turret with spring-loaded end blocks completes the folds while the next cake advances the wrapped one.
Where This Machine Fits
See how this machine integrates into the complete production line
MOI Engineering Private Limited provides machines for every stage of the production line.View all machines
Request reference clients in your region to hear directly from manufacturers running this machine in production.
Request a Quote for SWIFT-VX
Our engineering team will provide a detailed proposal tailored to your production requirements. Most quotes delivered within 24 hours.
