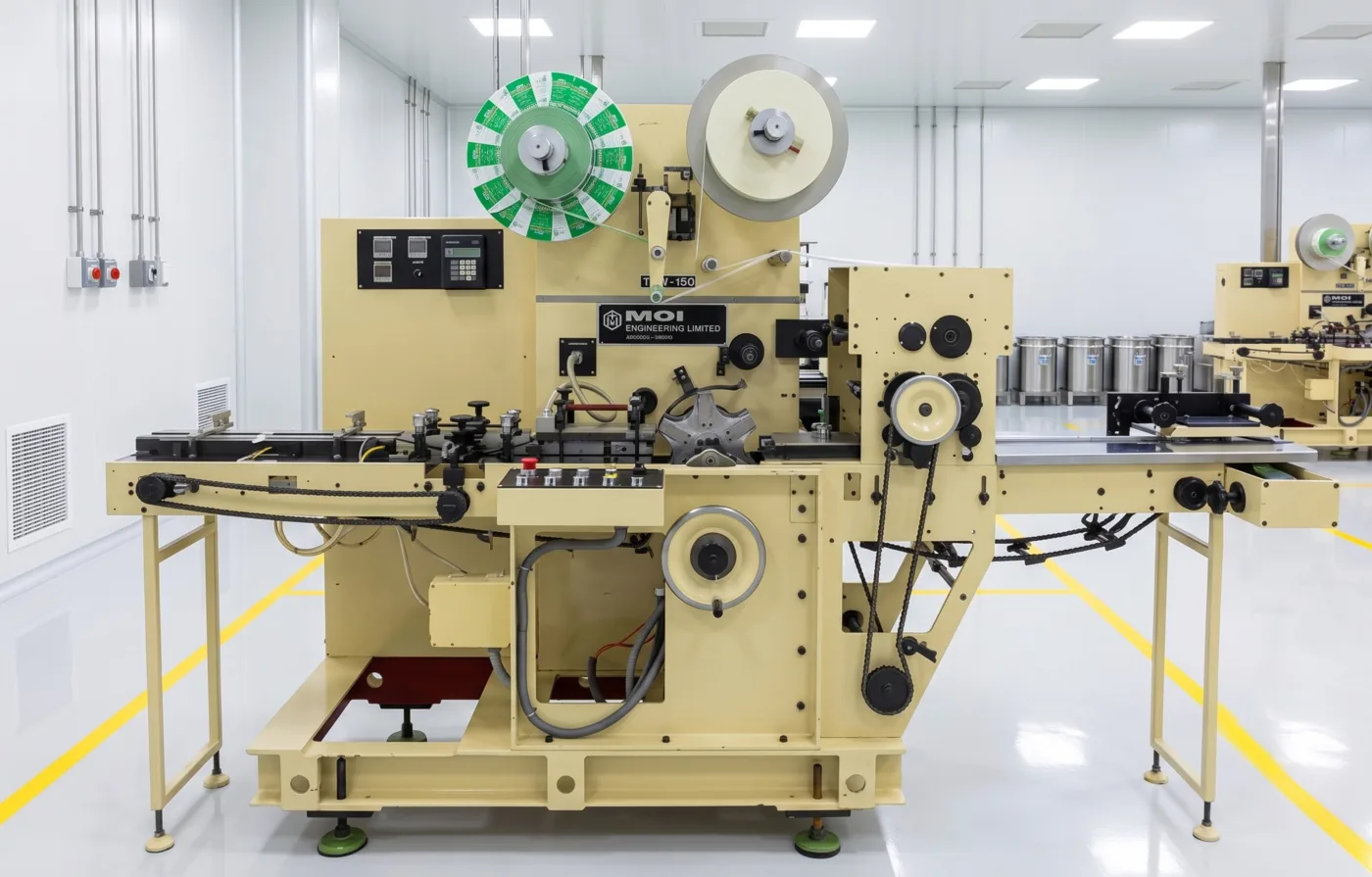

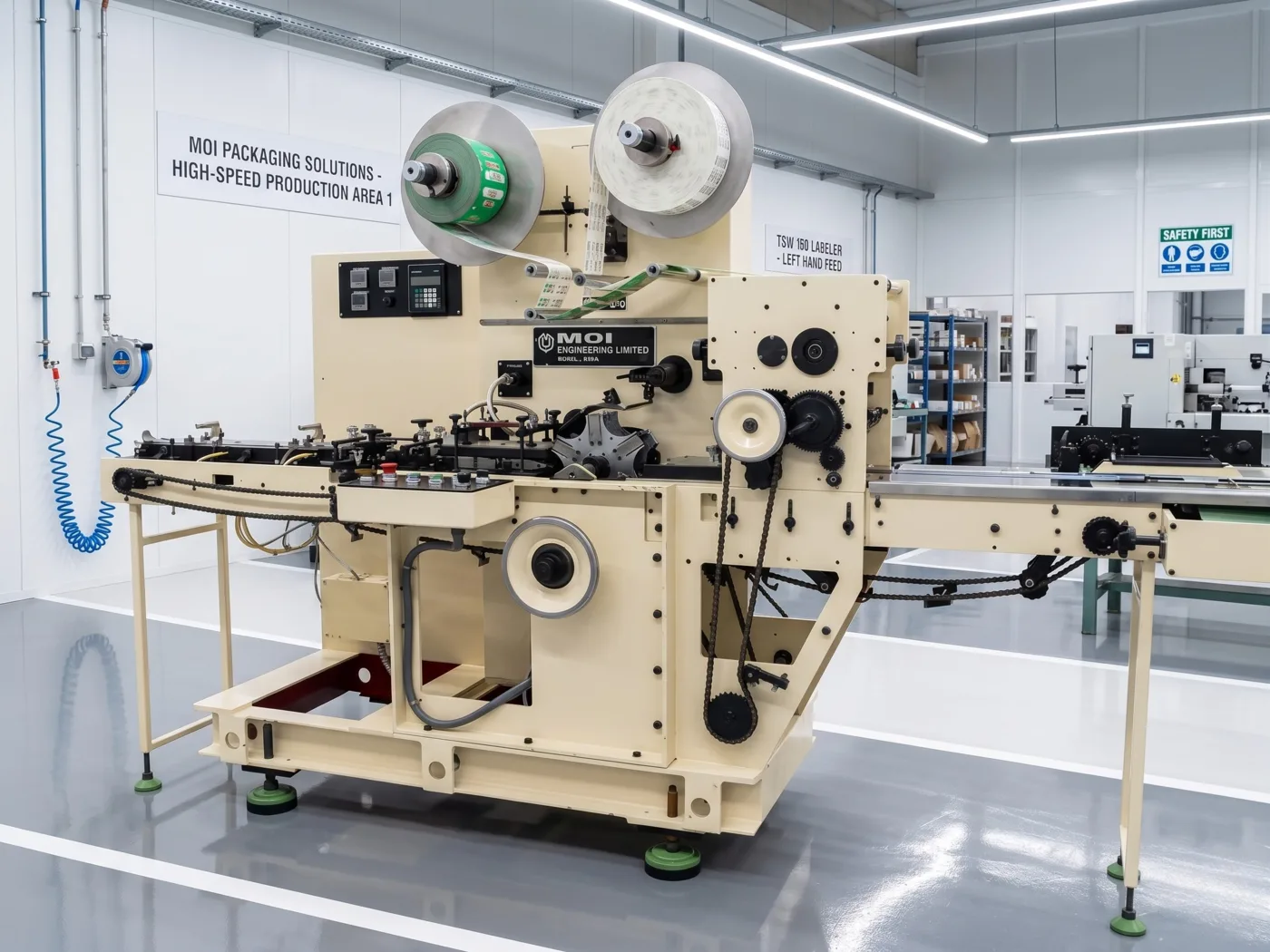

TSW 150 Toilet Soap Wrapping Machine
Single- and double-wrapper toilet soap wrapping at up to 150 packets per minute.
Overview
The TSW 150 wraps various sizes of toilet soap with single and double wrappers at up to 150 packets per minute. It handles heat-sealable film and laminates and poly-coated materials as well as glue-sealable outer-coated material, with rotary and stationary knives cutting the wrapper to length and side heaters and glue applicators completing the long-seam and side seals. Built from high-precision, heat-treated components, it is a robust, low-maintenance, operator-friendly machine, sitting alongside the TSW 160 in MOI Engineering's toilet-soap wrapping range.
Key Specifications
Full Technical Specifications
TSW 150 Toilet Soap Wrapping Machine -- Complete specification details
| Specification | Value |
|---|---|
| Output | Up to 150 packets/min (depending on size and weight of soap) |
| Product Length | 60 – 100 mm |
| Product Width | 40 – 65 mm |
| Product Height | 16 – 30 mm |
| Wrapping Material | Paper / Poly / Hot melt laminated |
| Lamination | Inner side / Outer side |
| Sealing | Heat seal / Glue |
| Product Shape | Rectangular / Parabolic (excluding round shape) |
| Core Diameter | 76 mm |
| Reel Diameter | 400 mm |
| Machine Dimensions | 2900 × 975 × 1760 mm (L × W × H) |
| Machine Weight | 800 kg |
| Electrical Supply | 415 V, 3 Phase – 4 wire, 50 Hz |
| Installed Power | 3 kW |
Features & Benefits
Wraps various sizes of toilet soap with single and double wrappers at up to 150 packets per minute
Handles heat-sealable film/laminates, poly-coated and glue-sealable outer-coated wrapping materials
Rectangular and parabolic soap shapes with inner- and outer-side lamination and heat- or glue-sealing
Built and supported by MOI Engineering with spare parts and service
This Machine Is for You If...
You need high-speed toilet soap wrapping for Soap & Detergent Industry production
You're upgrading from manual processes to automated soap bar packaging
You need a machine that delivers wraps various sizes of toilet soap with single and double wrappers at up to 150 packets per minute
Where This Machine Fits
See how this machine integrates into the complete production line
MOI Engineering Private Limited provides machines for every stage of the production line. View all machines
Request reference clients in your region to hear directly from manufacturers running this machine in production.
Request a Quote for TSW 150
Our engineering team will provide a detailed proposal tailored to your production requirements. Most quotes delivered within 24 hours.
