CM-60 Glue Cartoning Machine
Packs 10 cigarette packets per carton at 30–40 bundles per minute.
Overview
The CM-60 Glue Cartoning Machine is built for users who demand a quality pack with low wastage. It packs 10 cigarette packets, in either Hinge-Lid (HLP) or soft-pack format, into pre-cut cartons or kraft paper. Packets are fed to a link-up conveyor online or manually; a suction-assisted extractor draws each carton from the magazine while a gum applicator lays glue on the side tucker, then synchronized top and bottom folders form the pack with continuous packet-push sealing. Output is 30 to 40 bundles per minute depending on bundle size.
Key Specifications
Full Technical Specifications
CM-60 Glue Cartoning Machine: complete specification details
| Specification | Value |
|---|---|
| Application | Cartoning of rectangular-shaped products |
| Output | 30 to 40 bundles per minute (subject to bundle size) |
| Product | Cigarette packets, 10 per carton (HLP or soft pack) |
| Cigarette Length Range | 46–85 mm |
| Cigarette Diameter Range | 6.4–9.5 mm |
| Bundle/Carton Size (Max) | 290 × 103 × 48 mm |
| Bundle/Carton Size (Min) | 264 × 64 × 44 mm |
| Power Requirement | 1.5 kW |
| Electrical Supply | 415 V, 3 Phase with Neutral, 50 Hz |
| Weight | Approx. 750 kg |
Features & Benefits
Fully automatic operation with manual or online product infeed
PLC controlled with a user-friendly text display / operation interface
Variable frequency drive (VFD) for speed control
Solid-state temperature control for consistent glue sealing
Safety clutches and solid-state sensor protection
Suitable for pre-cut cartons or kraft (craft) paper
This Machine Is for You If...
You are set up for cigarette carton bundling
You also run cartoning of rectangular products
You need 30–40 bundles/min and a machine built to hold that rate
Frequently Asked Questions
What is the output of the CM-60?
30 to 40 bundles per minute, subject to bundle size. The bundle configuration is what moves that number, so quote us the pattern you need rather than a packet count.
What products does the CM-60 handle?
Cartoning of rectangular products, and in cigarette work it takes packets with a cigarette length of 46 to 85 mm and a diameter of 6.4 to 9.5 mm.

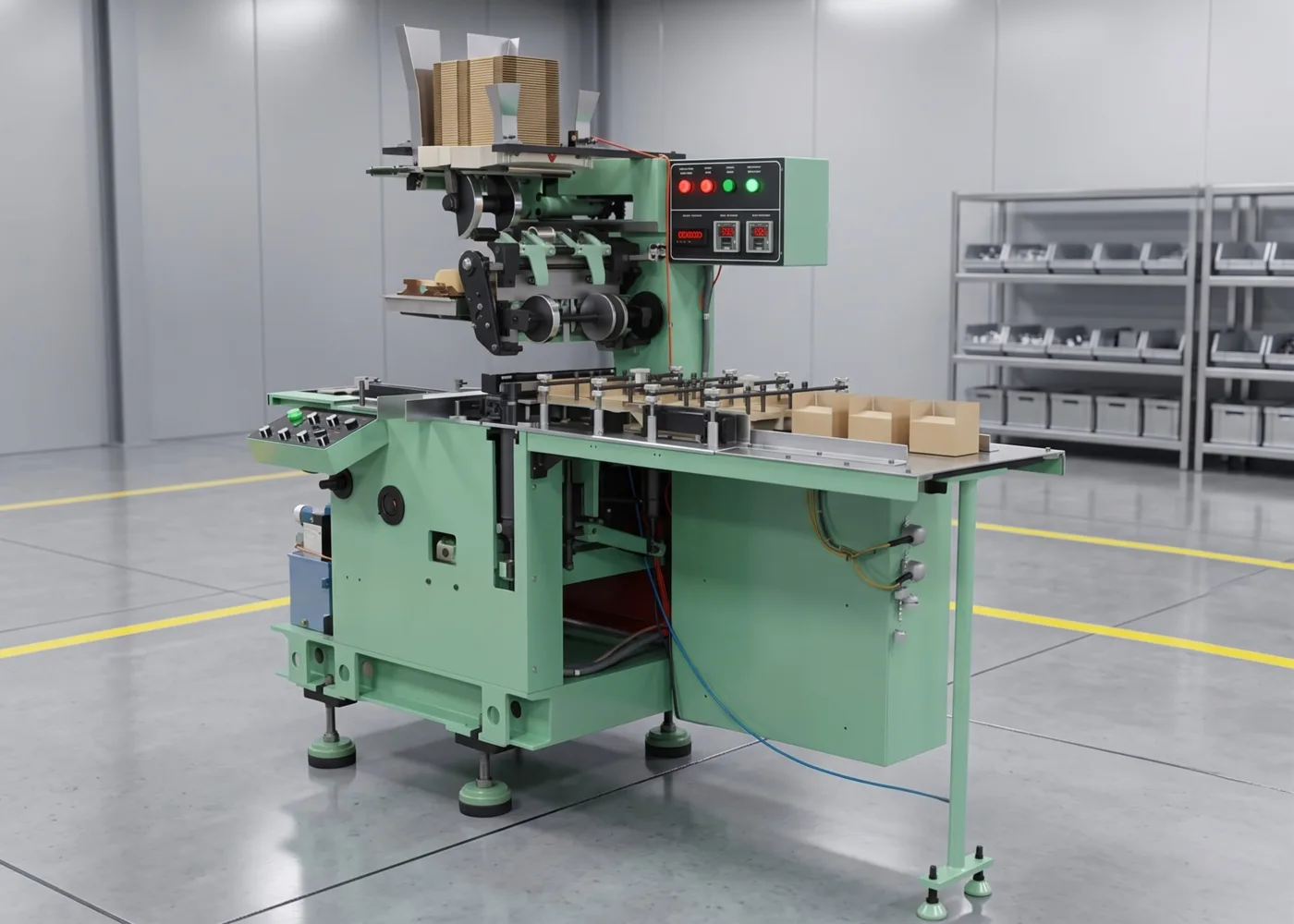

How does the CM-60 differ from the CM-40?
They are distinct machines, not a rename. Match the model to the bundle rate and product size you actually run; send both and MOI will confirm which one fits.
